Designing an industrial wash bay within a company operating heavy vehicles presents numerous technical, spatial, and environmental challenges. When an infrastructure must balance restricted physical space, high operational flow, and strict environmental requirements, applied engineering becomes the cornerstone of success. This article examines in detail the project executed by Multi PSI for OmniFab, perfectly illustrating how pairing equipment innovation with ergonomic design achieves maximum efficiency without compromising available workspace.
Table of contents
-
Environmental Responsibility: MPSI-5011 Biodegradable Detergent
-
Comparative Analysis: Standard Installation vs. Multi PSI Custom Solution
Fleet Maintenance Challenges in Restricted Spaces
Regular cleaning of trucks and heavy vehicles is a fundamental pillar in maintaining an efficient and durable commercial fleet. However, most industrial buildings and mechanical shops face a major spatial constraint. Floor space is precious and primarily allocated to machining, manufacturing, or storage operations.
Faced with limited space, OmniFab was seeking an innovative solution to maintain its truck fleet independently, quickly, and safely. The issue lay in the inability to install a bulky conventional wash station while still requiring sufficient power to dislodge road grime, oils, and deposits accumulated during travel.
To reconcile these opposing requirements, a deep reflection on the overall equipment architecture was necessary. The goal was to clear the floor area completely while providing maximum water pressure and uninterrupted thermal availability to wash operators.
Expertise in high-pressure cleaning system engineering made it possible to formalize an approach where every component is strategically remote-located. It is within this rigorous framework that the concept of space optimization and cleaning performance took on its full meaning for the OmniFab project.

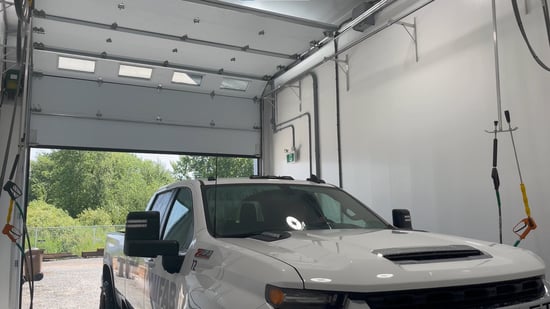

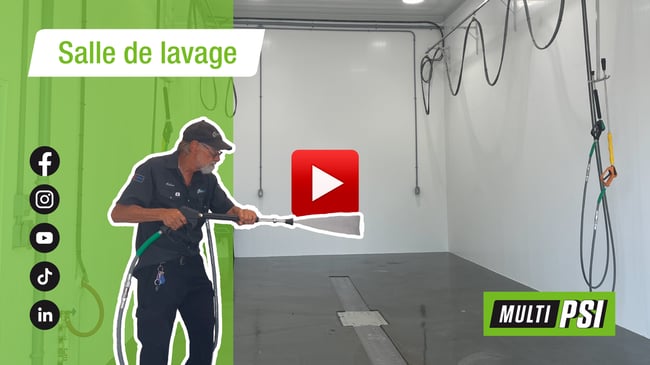

Design of OmniFab's Custom Wash Room

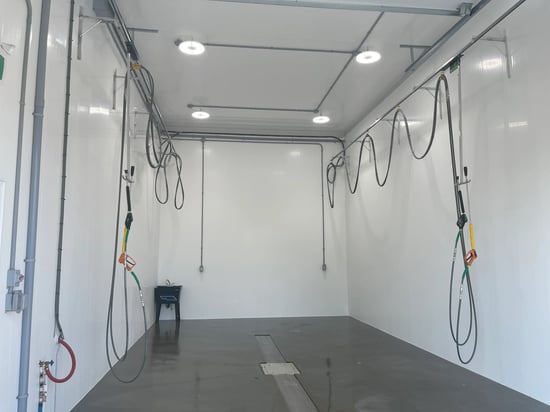

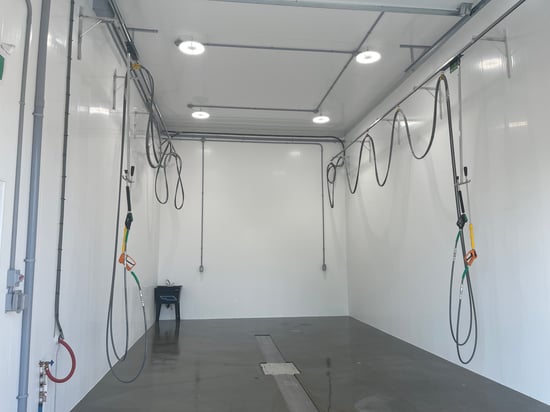

To meet OmniFab's specifications precisely, our technicians designed a high-performance, seamlessly integrated wash room. Rather than relying on mobile equipment or a bulky standalone unit placed on the floor, the entire system was designed modularly.
This layout methodology routes water, electricity, and cleaning fluids from a separate technical area to the wash bay itself. The operator handles only lightweight spray guns connected to overhead suspended rails, eliminating all floor obstacles.

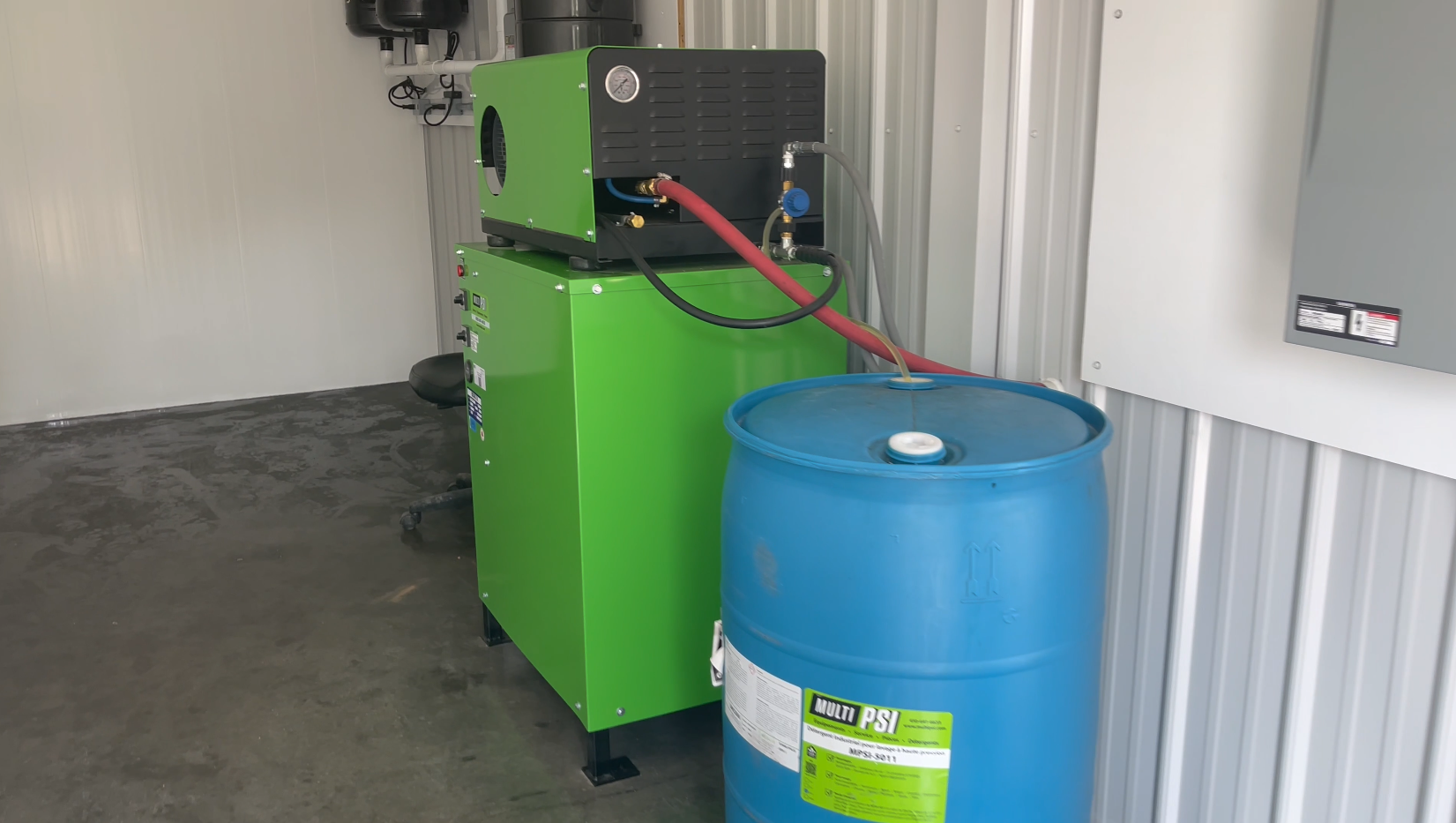

MPC4030-HE4-63 High-pressure washer
At the heart of the installation is Multi PSI's MPC4030-HE4-63 stationary high-pressure washer. This industrial unit stands out for its exceptional robustness and ability to deliver continuous work under heavy operational demands.
The washer delivers 3000 PSI pressure combined with a flow rate of 4 gallons per minute (GPM). This balanced ratio between pressure and volume guarantees sufficient mechanical impact to dislodge caked-on mud without damaging paint or sensitive truck components.
Additionally, the MPC4030-HE4-63 washer is specifically engineered to accept a direct hot water supply. This feature is crucial for maximizing cleaning efficiency while reducing total time required per vehicle.
575-Volts Electrical Power Supply
To operate a high-pressure pump of this scale reliably and energy-efficiently, a 575-volt three-phase power supply was chosen. This voltage level is standard in heavy industrial environments in Quebec.Using 575V power offers several key technical advantages compared to single-phase systems or combustion engines:
- A significant reduction in electrical current intensity (amperage), minimizing cable overheating.
- Perfect consistency in pump rotation speed, preventing sudden pressure drops.
- Zero direct emissions inside the building, eliminating harmful exhaust gases.
- A greatly reduced noise footprint, promoting a safe and pleasant work environment.
Constant Hot Water Production and Energy Efficiency
Cold water washing quickly shows its limits when removing greases, road binders, tar, or dissolved dust-control salts. Water temperature is the most influential chemical and physical acceleration factor when cleaning industrial vehicles.
In the ongoing pursuit of space optimization and cleaning performance, thermal water management was meticulously sized. The objective was to offer an unlimited supply without monopolizing the wash bay.
The Role of the 48kW Water Heater in a Dedicated Mechanical Room
To guarantee an uninterrupted flow of hot water, we installed a 48 kW industrial electric water heater in a dedicated mechanical room, physically separated from the wash area. This technical layout protects electrical equipment from ambient humidity and water spray.
This high-capacity thermal water heater is calibrated to continuously raise water temperature at a 4 GPM flow rate. The installation optimizes available space while ensuring maximum energy efficiency thanks to reinforced tank insulation and precise electronic temperature control.
To learn more about heat transfer fundamentals in wash systems, consult technical guides on industrial energy efficiency standards published by Natural Resources Canada (NRCan).
Why Water Temperature is Crucial Against Stubborn Dirt
Hot water radically alters cleaning kinetics. Heat lowers oil viscosity and melts hardened grease on truck chassis and axles.
By combining the thermal action of hot water with the 3000 PSI mechanical pressure of the MPC4030-HE4-63 pressure washer, the dwell time required to break down dirt is cut by two-thirds compared to cold water washing. This results in substantial labor savings and a net reduction in overall water consumption.
Ergonomics and Distribution: The 30-Foot Rail System
The physical layout of the wash area dictates execution speed and staff safety. A recurring problem in workshops is high-pressure hoses trailing on the ground, creating major trip hazards and suffering premature wear under vehicle tires.
The solution implemented for OmniFab solves these issues through the integration of an overhead guidance structure.
Dual Line : High Pressure and Active Foam

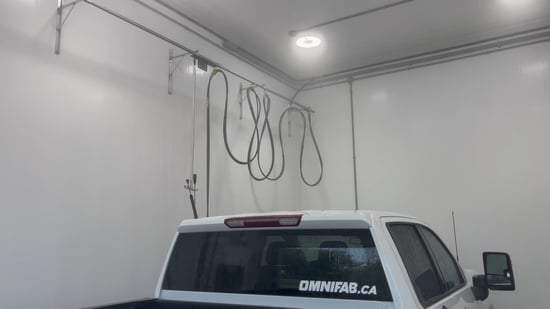

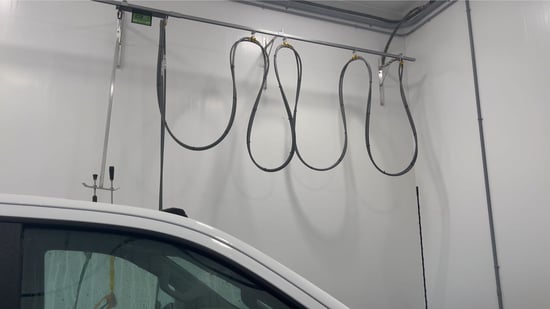

Adjacent to the mechanical room, a 30-foot rail system was mounted along the bay walls. This rail supports two distinct lines:
- One line dedicated to hot water high pressure for rinsing and blasting away dirt.
- One line dedicated to high-pressure foam application for pre-washing and loosening contaminants
Thanks to smooth-trolley ball bearings, the operator effortlessly glides hoses, lances, and spray guns along the full length of the truck. Hoses remain suspended at all times, clear of vehicle and pedestrian traffic zones.
Time Savings and Reduced Equipment Wear
Using a 30-foot rail system transforms the user experience. OmniFab technicians no longer have to untangle heavy hoses or drag bulky carts around vehicles.
From an operational standpoint, this setup dramatically extends hose lifespan. By eliminating crushing and abrasion against rough concrete, hose replacement frequency is reduced by over 80%, boosting the project's overall ROI.
Environmental Responsibility: MPSI-5011 Biodegradable Detergent
Modern cleaning performance cannot be divorced from environmental responsibility. Cleaning a commercial fleet generates wastewater laden with particulates and organic matter that must be treated properly in accordance with municipal regulations.
With this in mind, the accompanying chemical product was thoroughly validated by our industrial manufacturing branch, Megalab.
Non-Toxic Breakdown of Greases and Oils

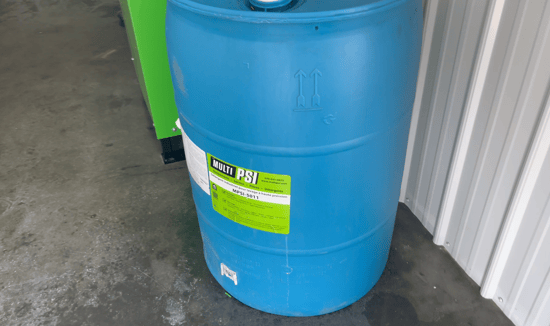

The high-pressure foam line on the rail system utilizes our MPSI-5011 biodegradable industrial detergent. Specially formulated for Multi PSI, this product features high penetrating power that encapsulates and breaks down heavy grease matrices and synthetic oils.
MPSI-5011 works through emulsification: it lifts polluting particles from bodywork without attacking plastics, glass, or rubber seals. The dense foam produced by the injector clings to vertical surfaces, extending chemical contact time without requiring excessive manual scrubbing.
Environmental Compliance and Infrastructure Preservation
MPSI-5011 detergent is 100% biodegradable according to OECD standards. It contains no chlorinated solvents, phosphates, or corrosive ingredients harmful to aquatic ecosystems.
To learn more about industrial detergent biodegradability standards, you can consult environmental protection guidelines from Quebec's Ministry of the Environment.
By protecting OmniFab's oil separators and sumps from toxic residue buildup, choosing this product lowers holding-tank pumping costs and ensures environmental compliance for sewer discharges.
Comparative Analysis: Standard Installation vs. Multi PSI Custom Solution
To provide a concrete measure of the benefits delivered by the project to optimize space and cleaning performance carried out at OmniFab, the table below presents a direct comparison between a traditional cleaning approach and the integrated Multi PSI solution.
|
Evaluation Criteria |
Standard Mobile Wash Station |
Multi PSI Custom Solution (OmniFab) |
|
Floor Footprint |
Large footprint (cart, cables, burner) |
Zero floor footprint (equipment in mechanical room & wall rails) |
|
Energy Source |
Gas/diesel engine or limited 120V/240V |
Stationary 575V 3-phase supply (high efficiency) |
|
Hot Water Management |
Integrated oil burner producing fumes |
Dedicated 48 kW water heater, zero direct emissions |
|
Distribution System |
Manual reels or hoses trailing on the floor |
30-foot wall rail with dual sliding lines |
|
Environmental Impact |
Aggressive, corrosive cleaning chemicals |
High-performance MPSI-5011 biodegradable detergent |
|
Average Wash Time per Truck |
45 to 60 minutes per vehicle |
15 to 20 minutes per vehicle |
This comparison highlights the clear advantage of a centralized design. The initial investment translates into immediate productivity gains while ensuring optimal safety for operators.
Operational Benefits and Sustainability for OmniFab
Commissioning this high-performance wash bay yields measurable, lasting results for OmniFab. By eliminating time wasted driving trucks off-site to commercial wash stations, the company retains full control over its maintenance schedule.
- A 65% reduction in time spent on cosmetic and functional fleet maintenance
-
Enhanced brand image for OmniFab thanks to impeccably clean vehicles on the road.
- Early detection of mechanical leaks or frame cracks through regular deep washing.
- Noticeable improvements in working conditions and safety for maintenance staff.
Through the successful combination of advanced engineering and eco-friendly products, OmniFab demonstrates that it is entirely possible to pair spatial efficiency, economic profitability, and environmental care.
Deploy a Custom Solution for Your Commercial Fleet
Every company faces unique space, infrastructure, and budget constraints. The work completed for OmniFab showcases Multi PSI's ability to engineer tailored solutions for all industrial applications.
Whether you operate a fleet of transport trucks, construction machinery, or municipal service vehicles, our technical advisors are ready to analyze your space and design your future wash bay.
Frequently Asked Questions (FAQ)
How do you achieve space optimization and cleaning performance in a small shop?
Optimization is achieved by moving heavy equipment (pressure washer and water heater) into a dedicated mechanical room and installing a rail system to keep washing hoses suspended off the floor.
What are the benefits of the MPC4030-HE4-63 pressure washer for heavy vehicles?
The MPC4030-HE4-63 delivers 3000 PSI at 4 GPM, runs on hot water, and uses 575V power, guaranteeing fast removal of tough grime on trucks.
Why use a 575-volt power supply for an industrial pressure washer?
575V three-phase power reduces required amperage, ensures high motor stability under heavy loads, optimizes energy efficiency, and enables zero direct indoor emissions.
How much power is needed for an industrial wash bay water heater?
A 48 kW electric water heater is ideal for delivering continuous hot water at 4 GPM, melting grease and oil quickly off chassis.
How does a 30-foot wash bay rail system work ?
The ceiling- or wall-mounted rail system uses sliding trolleys supporting high-pressure and foam lines, allowing the operator to move around the truck effortlessly.
Is MPSI-5011 biodegradable detergent effective on heavy grease?
Yes, MPSI-5011 detergent is specially formulated to emulsify and break down grease, oil, and road film, while being 100% biodegradable and eco-friendly.
Why choose hot water washing over cold water?
Hot water dissolves oil and grease up to three times faster than cold water, significantly reducing cleaning time and water consumption per vehicle.
Can a high-pressure wash bay be installed without losing usable floor space?
Yes, by placing pumping and heating units in a mechanical room and using overhead rails or booms, floor space remains completely open for vehicle movement.
What time savings were observed when maintaining a fleet with a custom setup?
At OmniFab, the custom setup cut truck wash time from 60 minutes to under 30 minutes—a reduction of over 50% in maintenance time.
How do I design a cleaning system tailored to my company's fleet?
Simply contact the Multi PSI technical team to conduct a feasibility study covering the required pressure, power supply, heating, and overhead rail layout. Call us directly at 450-641-6633, ext. 221.
