In today's industrial operations, optimizing wash time, operator safety, and workstation ergonomics are fundamental priorities. Too often, high-pressure hoses dragging on the floor slow down operations, wear out prematurely, and create unnecessary tripping or falling hazards. This strategic guide was designed by the Multi PSI technical team to provide a comprehensive analysis of industry-leading hose suspension solutions, including Mosmatic wall and ceiling wash booms.
Whether you manage a heavy truck wash center, a food processing plant, or an industrial maintenance shop, you'll find here the essential technical benchmarks needed to make an informed choice and get lasting value from your high-pressure washing installations.
Table of contents
-
Types of Ceiling and Wall-Mounted Wash Boom: Detailed Comparison
- Buying Guide and Technical Selection Criteria
- Installation Guide and Preventive Maintenance
Understanding How an Industrial Wash Boom Works
A ceiling or wall-mounted wash boom is an articulated mechanical device made of stainless steel or galvanized steel, designed to suspend high-pressure water supply hoses overhead. By raising the flexible hose above the work area, the system gives the operator full freedom of movement to maneuver the wash gun/lance around the vehicle or equipment being cleaned.
The technological core of a Mosmatic boom relies on its precision Swiss-engineered sealed swivel joint. This high-end mechanism absorbs torsional stress and allows exceptionally smooth rotation.
Depending on the layout of the wash bay and the presence of obstacles (beams, ductwork, overhead cranes, or wall clutter), the ceiling boom offers a full 360-degree rotation, while the wall-mounted boom pivots on a 180-degree axis to cover a defined semicircular zone — ideal for working around structural constraints.
Integrating ceiling or wall-mounted wash booms transforms how workspace is managed. By eliminating hoses dragging on the floor, it protects the hose's outer sheath from premature abrasion and from being crushed under the wheels of heavy vehicles.
Why Integrate a Wash Boom into Your Cleaning Bays ?
Installing ceiling and wall-mounted wash booms in industrial facilities addresses multiple concerns around efficiency, safety, and economic profitability.
Increased Space and Safety
Fully clearing the floor is the first measurable benefit. Hoses lying on the ground are the leading cause of slips and trips in industrial wash bays. In addition, a suspended hose no longer comes into contact with oils, grease, or corrosive residue built up on the concrete slab, reducing the risk of contaminant transfer and simplifying general cleaning of the work area.
Optimizing Tight Areas and Clearing Obstacles
In tight spaces where every square foot counts, or in facilities cluttered with equipment and piping, suspending the hoses frees up the entire floor area and prevents snagging on fixed structures.
Ergonomics and Reduced Worker Fatigue
Constantly handling a heavy, rigid high-pressure hose causes significant muscle fatigue for professional washers. Thanks to their tension springs and ball bearings, wash booms neutralize the hose's resistance. The operator no longer has to pull on the hose — they simply guide the lance with precision, reducing the risk of musculoskeletal disorders (MSDs).
Increased Productivity and Equipment Saving
By making it easier to access the top and all sides of large structures, a ceiling or wall-mounted wash boom cuts average wash time per unit by 20% to 35%. In addition, the service life of high-pressure hoses is on average tripled when they are protected from being crushed by trucks or forklifts.
Classification of Ceiling and Wall-Mounted Wash Booms
To meet the diversity of building layouts and washing programs, Multi PSI offers the full lineup of Mosmatic wash booms, specifically engineered for demanding high-pressure applications.

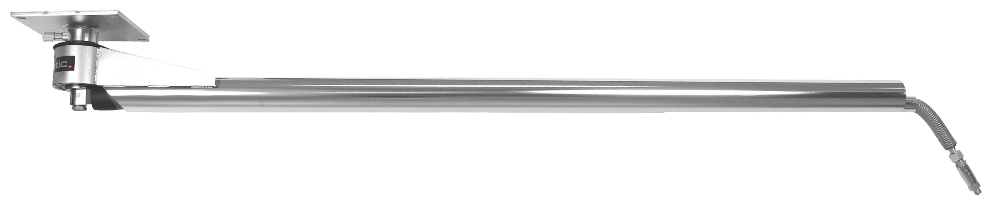

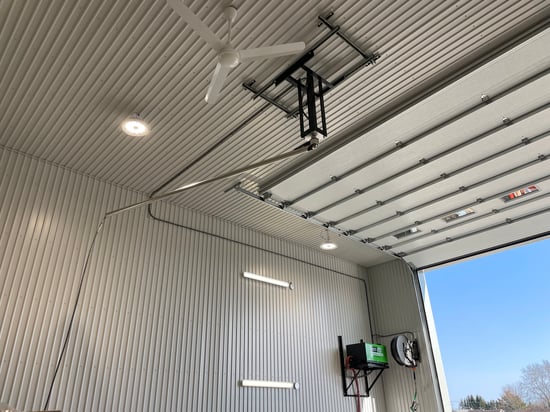

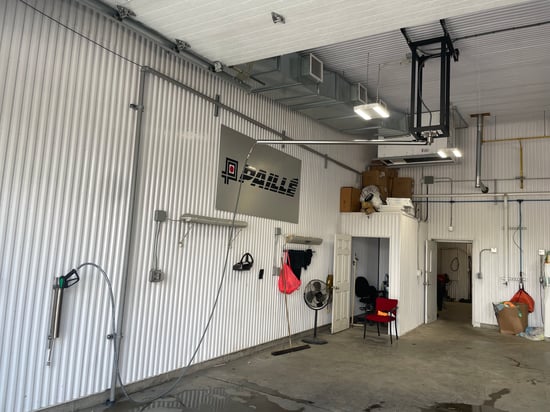

The Ceiling Boom
A true industry standard, the ceiling boom consists of a rigid horizontal arm mounted on a 360° vertical rotary coupling. It's a versatile product widely used in car washes, food processing plants, and mining operations. It's perfectly suited for spraying high-pressure liquids and compressed air.

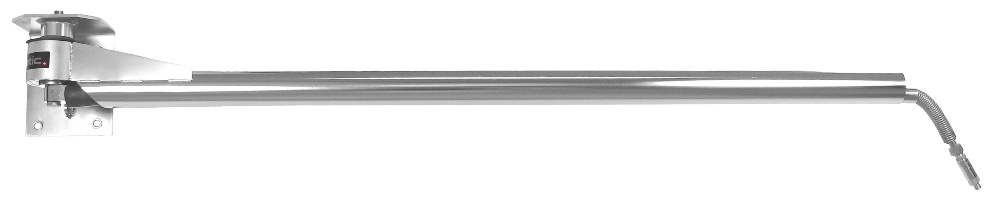

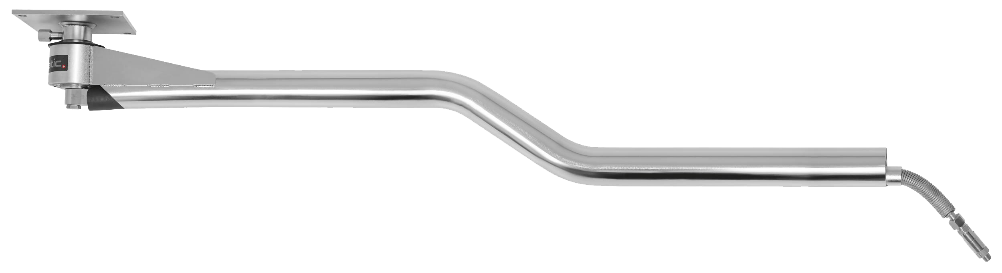

The Z-Shaped Ceiling Boom
The Z-shaped ceiling boom offers a specific geometry that allows several ramps to be stacked at the ceiling within a single station without the hoses becoming tangled. This configuration allows separate lines to run side by side (for example, a high-pressure water line and a high-pressure foam application line), enabling a highly cost-effective multi-step wash program.

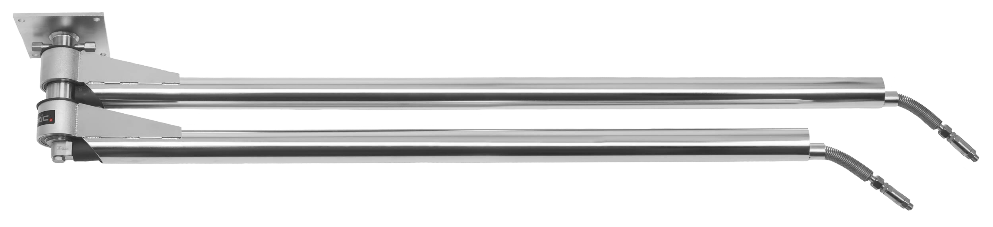

The Double Ceiling Boom
Designed for tunnel wash prep areas or heavy-duty maintenance stations, the double boom integrates two independent rotary arms on the same mounting axis. In a high-performance wash bay, it's highly recommended to connect the foam brush to the upper boom and the high-pressure lance to the lower boom to maximize operational efficiency.
The Wall-Mounted Boom
When ceilings are too high, too low, or crossed by ventilation ducts, piping, and overhead cranes, the wall-mounted boom becomes the ideal solution. It anchors to vertical structures to work around ceiling obstacles and maximize the range of motion in tight bays and work zones.

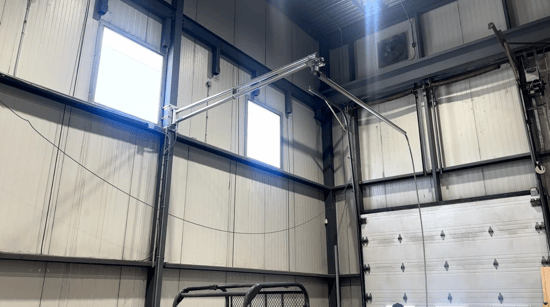

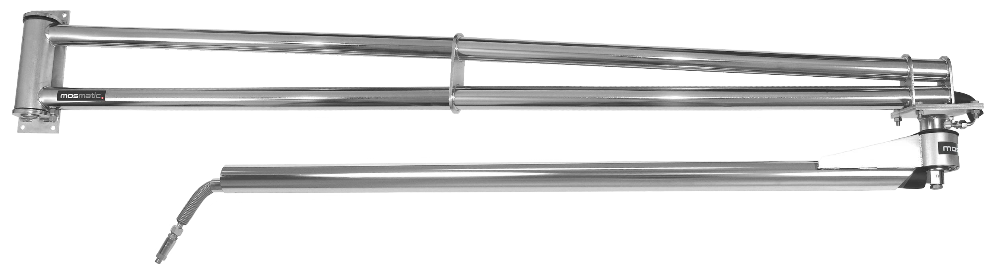

The Long-Reach Extendable Wall-Mounted Boom
Designed for environments requiring an exceptional range of motion, the extendable wall-mounted boom reaches distant areas thanks to a telescopic arm or one articulated across multiple sections. Combined with the right accessories and lances, it offers an impressive reach of up to 39 feet (12 meters), ideal for heavy truck wash areas, aircraft, or mining complexes.
Comparison Table of High-Pressure Wash Boom Types
To help you select the boom best suited to your work and industry requirements, here are the key technical characteristics of the main models.
|
Boom Type |
Rotation Angle |
Mounting Location |
Main Applications |
Key Advantage |
|
Ceiling Boom |
Smooth 360° |
Concrete slab / High structure |
Wash bays, mines, plants |
Versatility and high durability |
|
Z-Shaped Ceiling Boom |
360° multi-level |
Central ceiling |
Multi-service wash centers |
Prevents multiple hoses from tangling |
|
Double Ceiling Boom |
360° independent |
Central ceiling |
Heavy maintenance, foam + high pressure |
Simultaneous use of two tools |
|
Wall-Mounted Boom |
180° guided |
Walls or load-bearing posts |
Tight spaces, outdoor areas, low bays |
Secure automatic rest position |
|
Extendable Wall-Mounted Boom |
180° articulated |
Reinforced wall structure |
Heavy trucks, aviation, mining |
Extended reach up to 39 feet |
Applications by Industry
Each industry has its own operational and regulatory standards. Ceiling and wall-mounted wash booms adapt to these requirements thanks to premium materials such as AISI 304 or 316 stainless steel.

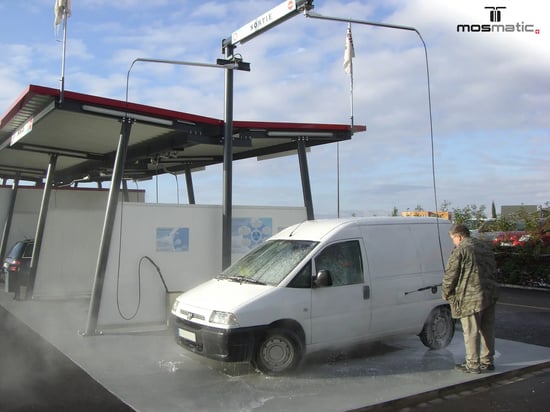

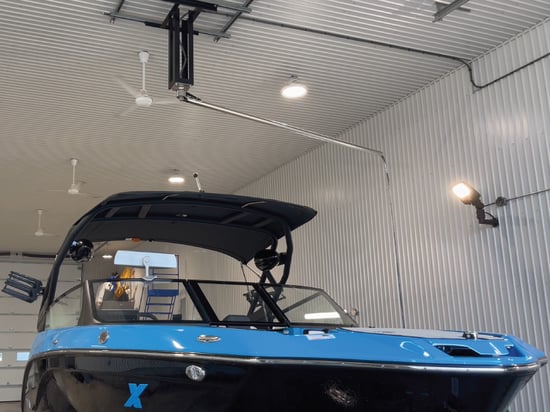

Transportation and Automotive Sector
Car dealerships, railway maintenance shops, airlines, and freight companies use ceiling or wall-mounted wash booms to keep their fleets clean. The vertical reach allows crews to clean the tops of trailers, aircraft fuselages, or train locomotives without a ladder.

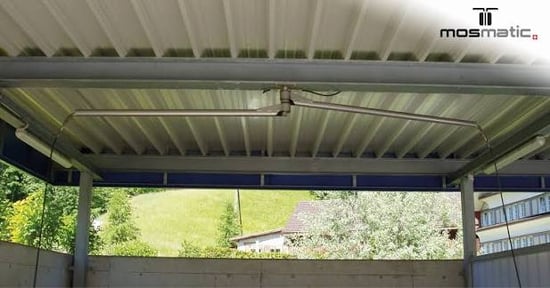

Agri-Food and Agriculture Sector
In food processing plants, butcher shops, fish markets, barns, and stables, hygiene requirements demand that no residue build up. Stainless steel booms prevent contact between the contaminated floor and the wash hoses, making it easier to strictly follow sanitary cleaning protocols.
Manufacturing and Mining Industry
Metalworking, plastics processing, rubber plants, and mining operations deal with stubborn grime (abrasive dust, cutting oils, heavy mud). Using a ceiling or wall-mounted wash boom fitted with reinforced rotary couplings allows fluids to be sprayed at very high pressure (up to 4000 psi) safely.
Buying Guide and Technical Selection Criteria
To choose the ideal configuration of ceiling or wall-mounted wash booms for your business, we recommend carefully evaluating the following criteria:
- Working pressure and flow rate: Check the maximum rated pressure (e.g., 3000 psi) and the maximum flow rate tolerated by the boom's rotary couplings.
- Fluid temperature: For hot water washing, make sure the coupling's internal seals can withstand high temperatures (up to 90°C–120°C / 194°F–248°F).
- Type of chemicals used: If strong acids or aggressive alkaline detergents are used, be sure to choose a structure and coupling made of higher-grade stainless steel.
- Bay height and volume: A bay with high ceilings (over 5 meters/16 feet) will require either a drop extension for a ceiling boom, or the installation of an extendable wall-mounted boom.
Expert Recommendation from Multi PSI: We strongly recommend consulting with high-pressure washing equipment experts to assess the structural constraints of your facility before permanently anchoring your wash booms.
Installation Guide and Preventive Maintenance
A well-maintained wash boom can offer several decades of operational service life. Installation must begin with confirming that the wall or ceiling support can bear the load and torque exerted by the lever arm.
Recommended preventive maintenance steps :
- Monthly visual inspection: Check the condition of the hose sheath connected to the boom and tighten the base plate mounting bolts.
- Lubricating the rotary couplings: Apply marine-grade or high-temperature grease to the rotary couplings every 3 to 6 months, depending on usage frequency.
- Replacing seals: As soon as any seepage appears at the rotation axis, replace the internal O-ring seal kit to prevent premature wear of the ball bearing.
Operational Summary and Investment
Ceiling and wall-mounted wash booms have proven their ability to transform industrial cleaning operations into activities that are safer, faster, and more cost-effective. Whether it's fully clearing the floor space, improving access to complex surfaces, or offering multi-product flexibility through Z-shaped or double configurations, this equipment represents a strategic investment with a strong return on investment.
By modernizing your bays with Multi PSI's high-pressure distribution solutions, you improve your operators' work environment while significantly reducing operating costs related to the recurring replacement of damaged hoses.
Ready to optimize the safety and performance of your wash bays ?
Our technical advisors assess your needs on-site and recommend the ceiling or wall-mounted wash boom configuration best suited to your operations.
Contact the Multi PSI team today for a customized evaluation.
Frequently Asked Questions (FAQ) About Wash Booms
When should I choose a wall-mounted boom over a ceiling boom?
The ceiling boom offers 360° coverage, ideal for open bays. The wall-mounted boom (180°) is preferred in tight spaces, when the ceiling is cluttered with obstacles (ventilation, beams, overhead cranes), or when it's not possible to anchor a structure to the ceiling.
What's the maximum reach possible with an extendable wall-mounted boom?
By combining an industrial extendable wall-mounted boom with a suitable wash lance, you can achieve an overall reach of up to 39 feet (about 12 meters).
Why use a Z-shaped ceiling wash boom in a wash station?
The Z shape allows two or more booms to be installed at the same central point without the arms or hoses becoming tangled. This makes it possible to combine high-pressure washing and foam application in the same bay.
Are ceiling or wall-mounted wash booms suitable for the food processing industry?
Yes, absolutely. Made of stainless steel, they prevent hoses from touching contaminated floors, ensuring strict compliance with food industry hygiene and sanitation standards.
What's the maximum pressure an industrial wash boom can handle?
Depending on the model and swivel joints, Mosmatic high-pressure wash booms handle standard operating pressures ranging from 3,000 PSI to 5,000 PSI.
How do I maintain the rotary coupling on a wash boom?
Periodic greasing of the bearings through the designated fittings, along with preventive replacement of internal seals, ensures smooth 360° or 180° rotation and prevents water leaks.
Can acidic detergents be run through a wall-mounted wash boom?
Yes, as long as you choose a boom with an internal channel and seals specifically designed to resist corrosive chemical agents, such as stainless steel fitted with Viton seals.
When should I choose a double ceiling wash boom?
The double boom is recommended when a single wash station needs two separate tools at the same time, such as a foam brush on the upper arm and a high-pressure lance on the lower arm.
Can the rest position of a wall-mounted boom be adjusted?
Yes. During installation, the wall mount allows you to set the precise angle of the rest position. Once work is finished, the operator simply brings the boom back against the wall, where it locks into its secure stop point, fully clearing the work area.
What are the direct financial benefits of installing a wash boom?
The investment pays for itself quickly through reduced wash time (20–35% productivity gain), a sharp decrease in hose wear, and the prevention of workplace accidents.
