The cleaning of heavy vehicle fleets and transport equipment represents a major challenge for logistics companies. Rigorous cleanliness management extends asset lifespan, optimizes brand image, and ensures road safety. With this in mind, Multi PSI designed and implemented a turnkey industrial wash bay for Transport Lajoie, combining technical power, ergonomics, and compliance with environmental standards.
This comprehensive guide details the technical infrastructure, technological choices, and operational benefits of an industrial-grade high-pressure wash system. Discover how to maximize the efficiency of your maintenance operations using custom-configured equipment.
Table of contents
Heavy Transport Cleaning Challenges and Project Needs
Transport companies face stubborn contaminants: road grease, de-icing salt, accumulated mud, and fuel residue. Without a high-performance high-pressure wash system, the time allocated to cleaning trucks increases exponentially, which immobilizes fleets and reduces overall productivity.
For the Transport Lajoie project, the objective was clear: create a safe, ultra-performing work environment capable of treating multiple vehicles successively without any drop in pressure or temperature. The space had to allow the operator to move freely around the vehicles without excessive effort.
Particular attention was paid to the robustness of the components, as continuous exposure to moisture and chemical agents requires rigorous industrial manufacturing standards.
Technical Configuration of the High-Pressure Wash Bay

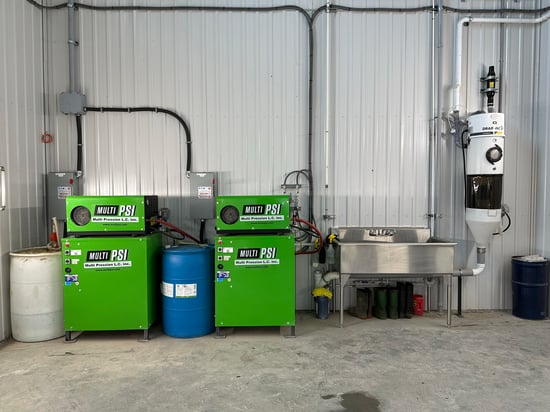

The core of the installation relies on two stationary industrial high-pressure washers operating in parallel to offer maximum versatility. The selected model, the MPC4030-HE4-63, is designed for heavy-duty applications requiring absolute consistency in workflow.
|
Equipment Component |
Technical Specification |
Operational Benefit |
|
Wash Units (x2) |
MPC4030-HE4-63 Model |
Continuous industrial reliability |
|
Nominal Pressure |
3000 psi |
Degreasing and deep cleaning |
|
Water Flow Rate |
4 gpm |
Fast rinsing and debris removal |
|
Power Supply |
575 volts (three-phase) |
Energy efficiency and high power |
|
Heating System |
48 kW electric water heater |
Constant hot water supply |
The 575-volt power supply reduces the amperage required to run industrial motors, optimizing the plant's overall energy consumption. The 48 kW water heater ensures that water instantly reaches the temperature required to break the molecular bonds of heavy oils and greases on your equipment structures.

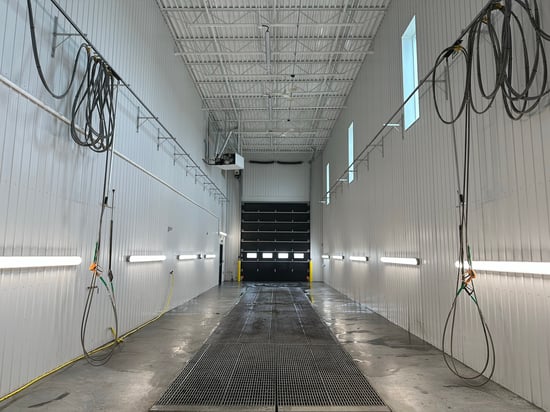

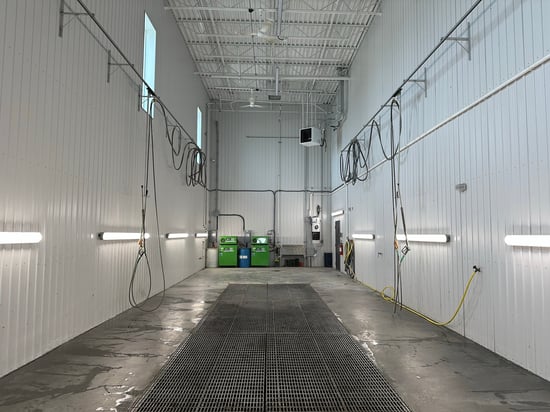

Rail System and Hose Management for Optimal Maneuverability
Dragging high-pressure hoses on the floor represents a major risk for workplace accidents (trips, falls) and accelerates premature equipment wear through abrasion. To address this issue, Multi PSI installed a suspended rail system on each side of the wash bay.
Each side is equipped with 60-foot hoses, allowing coverage of an entire tractor-trailer without having to move the vehicle during the process. The mobile trolleys on the rail naturally follow the operator's movements, significantly reducing physical fatigue.
The system integrates two distinct lines for a quick transition between work phases: a high-pressure line dedicated to deep cleaning and rinsing, and a high-pressure foam line designed for detergent application.

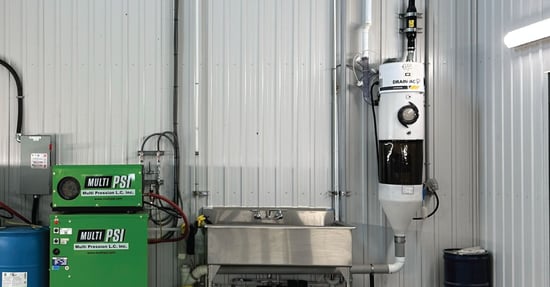

Residue Management and Maintenance with the Drainvac Central Vacuum
The accumulation of standing water, mud, and debris on the floor hinders the safety and efficiency of a wash bay. Efficient management of liquid and solid waste is ensured by integrating a Drainvac central vacuum, specifically configured for wet industrial environments.
This device suctions residual liquids and heavy sediments directly at the source. The waste is routed to a unit containing a separation basket, preventing floor drains from clogging and simplifying wash bay maintenance tasks. This also allows you to recover objects that might have been accidentally vacuumed up.
Using this technology helps keep the floor dry faster after wash sessions, reducing slip hazards for personnel and preventing the formation of foul odors related to stagnant water.
Eco-Friendly Performance and Chemical Optimization
Cleaning efficiency does not rely solely on mechanical pressure, but also on chemical action. As part of the Transport Lajoie project, Multi PSI integrated the use of MPSI-5011 biodegradable industrial detergent, formulated specifically for the high-pressure foam line.
This industrial soap penetrates the densest layers of dirt to lift them from the bodywork without altering the paint or aluminum components of the trucks. It also contains D-Limonene, which acts as a degreasing agent. The foam application extends the product's contact time on vertical surfaces, maximizing its effectiveness.
The choice of MPSI-5011 detergent allows the company to strictly comply with municipal environmental standards regarding wastewater discharge, while guaranteeing an impeccable visual result. Additionally, it contains a salt inhibitor to prevent corrosion from road salt.
Profitability Analysis and Operational Gains
Investing in a custom high-pressure wash system represents an initial cost that quickly translates into substantial savings. By reducing the time required to wash each unit in the fleet, Transport Lajoie maximizes the road time of its drivers and trucks.
The combination of 3000 psi hot water and MPSI-5011 detergent reduces overall water consumption per vehicle compared to less efficient installations. Less water used also means less effluent to treat, thereby reducing environmental taxes and operating costs.
Furthermore, the durability of the MPC4030-HE4-63 pumps minimizes production downtime for repairs, ensuring constant availability of the wash bay throughout the year.
Maintenance Guide for an Industrial Wash Installation
To preserve the long-term performance of a high-pressure wash bay, a maintenance schedule must be applied. Here are the essential control points recommended by our technicians:
- Checking oil levels in the-pressure pumps
- Visual inspection of the 60-foot hoses to detect any wear
- Cleaning spray nozzles to prevent pressure loss
- Checking the rail system trolleys and lubricating the bearings
- Emptying and cleaning the filters of the Drainvac central vacuum
Regular preventive maintenance eliminates over 80% of the causes of major breakdowns on industrial equipment, protecting your investment for decades to come.
A facility designed to maximize operational efficiency
The Transport Lajoie wash bay demonstrates that well-thought-out engineering transforms a heavy maintenance task into a smooth, fast, and eco-friendly process. Thanks to the MPC4030-HE4-63 high-pressure washers, the suspended rail system, and Drainvac technologies, this installation stands out as a model of efficiency for the transport sector.
Every company has unique needs when it comes to industrial cleaning. Our specialists design infrastructures adapted to your space, budget, and workload constraints.
To obtain a personalized analysis of your needs or to plan the design of your future high-pressure wash bay, contact our expert team today.
Frequently Asked Questions (FAQ)
Why choose a high-pressure wash system operating at 575 volts?
575 volts is the Canadian industrial standard for high-power motors. It allows robust equipment like the MPC4030-HE4-63 to be powered with maximum energy efficiency and reduced amperage, avoiding overloading the company's electrical grid.
What is the difference between cold water and hot water cleaning?
Hot water, generated here by a 48 kW water heater, is essential for dissolving grease, oil, and hydrocarbons. It acts as a natural thermal solvent that speeds up cleaning and cuts labor time in half compared to cold water.
Why install a suspended rail system for the wash hoses?
The suspended rail system eliminates hoses dragging on the floor, which removes fall hazards for workers. Additionally, it protects the 60-foot hoses from being crushed by heavy vehicles and greatly facilitates the handling of the wash lance.
Is MPSI-5011 detergent safe for all truck surfaces?
Yes, MPSI-5011 industrial detergent is formulated to be highly effective against road dirt while remaining perfectly safe for body paint, chrome, and aluminum tanks, without causing oxidation or tarnishing.
How does the Drainvac vacuum help with environmental compliance?
The Drainvac central vacuum captures heavy sludge and liquid residues before they enter general drainage systems. This facilitates sediment recovery for proper treatment, avoiding overloading oil and water separators.
Why use two high-pressure washers instead of just one?
The MPC4030-HE4-63 model is configured to optimally provide a flow rate of 4 GPM at a pressure of 3000 psi for a single operator. Installing two separate washers in parallel allows two employees to work simultaneously on each side of the vehicle without any drop in pressure or performance, thereby cutting truck downtime in half.
What happens if one of the pumps requires maintenance or repair ?
The installation of two stationary industrial washers configured in parallel ensures complete continuity of your activities. If one unit is down for preventive maintenance, the second remains 100% available and operational. This avoids any complete shutdown of your wash bay and guarantees that you can continue cleaning your equipment at all times.
What maintenance does the 48 kW industrial water heater require?
The water heater requires periodic inspection of the heating elements to detect scale or tartar buildup, particularly in hard water regions. Regular flushing of the tank helps eliminate accumulated sediment from the bottom.
What is the average lifespan of hoses on a 60-foot rail system?
Thanks to the suspended rail system that prevents ground friction and crushing, high-quality industrial hoses can last several years. A visual inspection is still recommended to detect any premature wear of the outer jacket.
How does Multi PSI determine the ideal configuration for a wash bay?
Our teams analyze the type of vehicles to be cleaned, the frequency of washes, available power sources (such as 575V), and bay dimension constraints to design a custom system that maximizes return on investment.
Author: Multi PSI has been an expert in high-pressure washing equipment for over 25 years. As an equipment distributor, we also offer mobile and workshop repair services. We are recognized for our expertise in custom projects, including washing platforms and trailers, as well as the installation of washing systems with reels, poles, or rails.
