In the industrial and municipal sectors, the mobility and responsiveness of cleaning equipment are major strategic issues. This in-depth guide was created by the team of experts at Multi PSI to present best practices in mobile high-pressure cleaning equipment. Through detailed technical analysis and the presentation of a real project designed for large-scale urban interventions, this article reveals how to maximize the performance, safety, and longevity of your mobile installations.
Small, custom-built wash station for pickup trucks: the ultimate mobile solution for industrial cleaning
Table of contents
- The Mobile Cleaning Revolution
- Why Choose a Custom Wash Platform?
- Designing a High-End Platform for Urban Work
- Technical Comparison: Mobile Washing Equipment
- Major Industrial and Commercial Applications
- Criteria for Properly Designing Your Mobile Unit
- Maintenance and Safety Tips
- The Evolution of Mobile High-Pressure Cleaning
- Frequently Asked Questions (FAQ)
The Mobile Cleaning Revolution
Maintaining cleanliness, safety, and hygiene at industrial sites and in public spaces is a constant challenge for infrastructure managers. Traditional cleaning methods, often dependent on a fixed water connection and permanent power supply, quickly reach their limits in the field.
To meet the market's current demands for flexibility and power, the custom wash platform for pick-up trucks has become the absolute benchmark. By turning a standard utility truck into a genuine self-contained washing station, businesses and public organizations optimize their daily operations while significantly reducing response times.
Why Choose a Custom Wash Platform?
Investing in a mobile unit built directly into a pick-up truck's bed offers major strategic advantages for field crews.
Increased Mobility and Ultra-Fast Deployment
A lighter vehicle equipped with a more compact platform can easily access narrow alleys, tight parking areas, public parks, or remote job sites. Unlike bulky trailers that require complex maneuvering and, in some cases, a special driver's license, a pick-up truck moves around with ease.
Ergonomics and Versatility on Job Sites
A custom design allows every component to be arranged logically:
- Direct access to control levers and the electric starter.
- Optimized storage for hoses and spray wands.
- Easier loading and unloading thanks to integrated anchor and lifting points.
Profitability and Productivity Gains
Time wasted looking for a water source or setting up extension cords on a job site represents a direct cost to your organization. With full water and fuel autonomy, your operators can start working the moment they arrive on site, maximizing the number of daily interventions.
Designing a High-End Platform for Urban Work

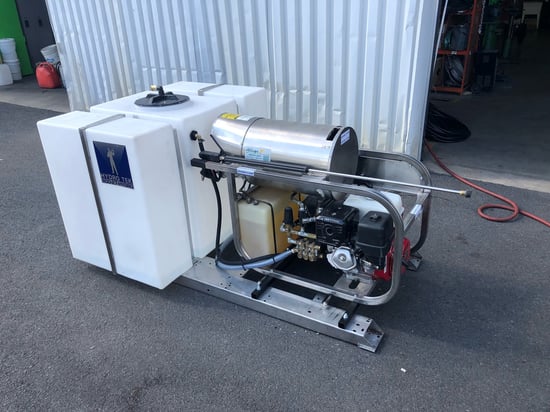

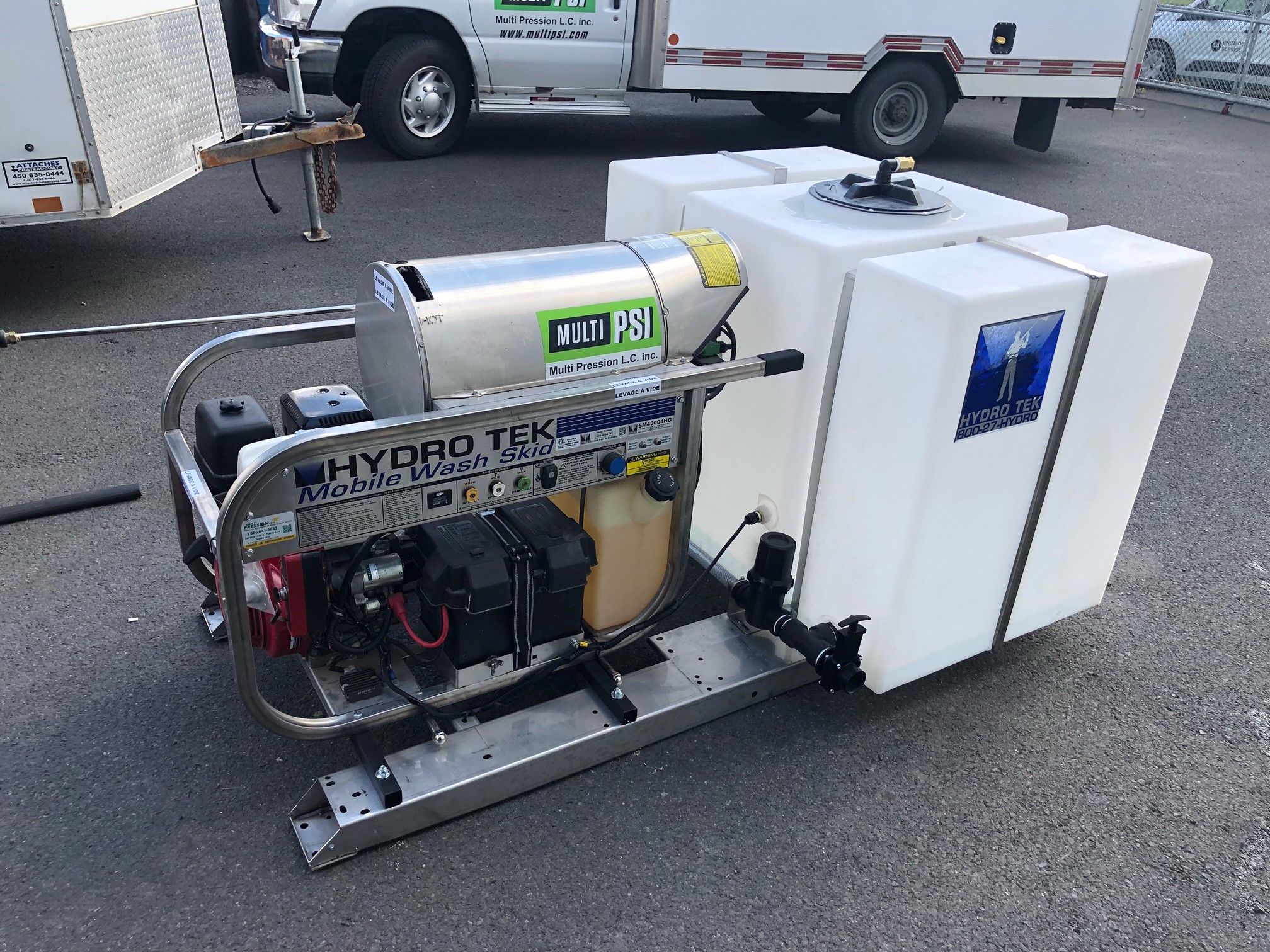

The Multi PSI team was commissioned to design and build a custom wash platform for a pick-up truck intended for demanding maintenance work in the public sector, particularly for infrastructure management in the greater metropolitan area.

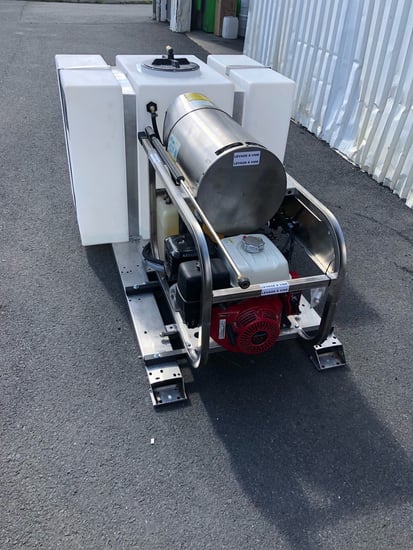

Rigid Structure and Stainless Steel Frame
To counter premature corrosion caused by water, chemicals, and winter de-icing salt, the entire frame was built from stainless steel.
This choice of material guarantees:
- Exceptional durability under intensive use conditions.
- A significant reduction in overall weight compared to a traditional painted steel assembly.
- A professional, polished look that reflects the user's brand image.
- Secure lifting points (empty lift rating) engraved directly into the structure for safely handling the platform with a forklift.

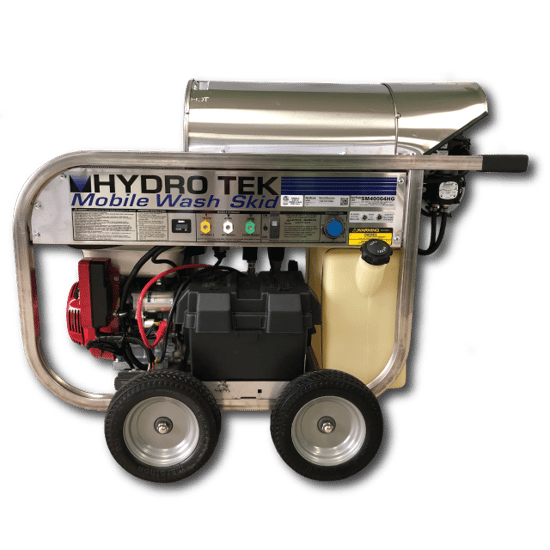

Hydro Tek SM40004HG Hot Water Pressure Washer
At the heart of this installation is the powerful Hydro Tek SM40004HG hot water pressure washer (Mobile Wash Skid). This industrial-grade equipment is configured to tackle the toughest grime:
- Operating pressure: 4,000 PSI for effectively stripping hard surfaces.
- Water flow: 4 GPM (gallons per minute), offering the perfect balance between impact force and rinsing.
- Engine: Professional Honda GX-series gasoline engine with electric start, known for its reliability and ease of starting in all weather conditions.
- High-performance burner: 300,000 BTU output, capable of instantly raising the water temperature to dissolve grease, oil, glue, and bituminous deposits.

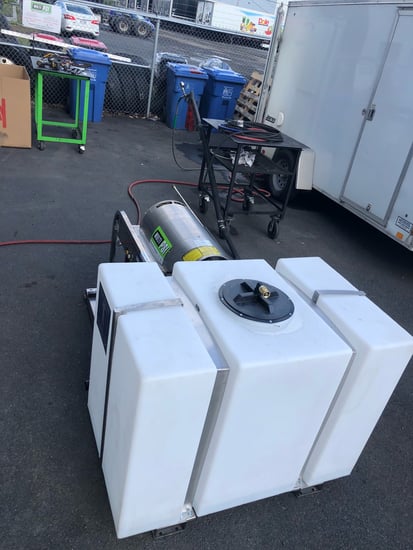

200-Gallon Tank with Low-Level Float
To ensure extended working autonomy far from any water distribution network, the platform carries a 200-gallon (757-liter) high-density polyethylene tank.
The system includes an essential safety feature: a low-level float connected to the pressure washer. If the water level in the tank drops below the critical threshold, the switch automatically cuts power to the pump. This protection prevents any risk of dry running (cavitation), thereby protecting the high-pressure pump's ceramic pistons and seals from costly damage.
Technical Comparison: Mobile Washing Equipment
To help you evaluate the options available when choosing professional cleaning equipment, here is a comparison table summarizing typical specifications by configuration:
|
Feature |
Trailer-Mounted Mobile Unit |
Standard Portable Equipment |
Custom Pick-Up Platform |
|
Pressure (PSI) |
3,000 to 4,500 PSI |
1,500 to 2,500 PSI |
4,000 PSI (Adjustable) |
|
Flow (GPM) |
4.0 to 5.5 GPM |
1.8 to 2.5 GPM |
4.0 GPM |
|
Water temperature |
Hot water (up to 200°F) |
Cold water |
Hot water (300k BTU burner) |
|
Frame material |
Painted / Galvanized steel |
Plastic / Light steel |
Corrosion-resistant stainless steel |
|
Tank capacity |
300 to 500 gallons |
None (direct connection) |
200 gallons + low-level float |
|
Urban maneuverability |
Moderate (complex maneuvers) |
Low (long cables/hoses) |
Excellent (truck access) |
|
Pump safety |
Variable |
None |
Automatic cutoff (integrated float) |
Major Industrial and Commercial Applications
A custom wash platform for pick-up trucks is particularly well suited to organizations and businesses operating in demanding, space-constrained environments.
Maintenance of Public Infrastructure and Urban Spaces
Municipalities and urban maintenance contractors must keep public property clean. This unit makes it possible to:
- Clean parks, public benches, and bus shelters.
- Wash garbage containers and commercial recycling areas.
- Disinfect and maintain monuments and public buildings.
Heavy Machinery Cleaning and Construction Sites
On civil engineering and construction sites, mud, dried cement, and grease build up quickly on machinery. Thanks to the 4 GPM flow combined with hot water from the 300,000 BTU burner, operators can strip grime off excavators, dump trucks, and formwork in record time.
Graffiti Removal and Commercial Degreasing
High-pressure hot water is the most eco-friendly and effective method for removing graffiti from brick, concrete, or metal without damaging the underlying surface. It also instantly dissolves oil deposits in parking lots and in front of loading docks.
Stripping products can also be used to remove graffiti in summer as well as in colder weather.
Criteria for Properly Designing Your Mobile Unit
To successfully design your future truck-mounted wash station, we recommend reviewing the following checklist:
- Payload calculation: Check your vehicle's maximum load capacity. A 200-gallon water tank weighs approximately 2,000 lbs (907 kg), plus the weight of the pressure washer and stainless steel frame.
- Power source selection: Choose a reputable gasoline engine (such as Honda) with an electric starter for effortless startup, especially on cold days.
- High-pressure pump quality: Opt for triplex pumps with ceramic pistons and brass heads for guaranteed durability.
- Built-in safety features: Make sure to include thermal relief valves and a low-water-level sensor to protect your investment.
- Reel ergonomics: Plan for sturdy manual, spring-loaded, or electric reels to avoid damaging high-pressure hoses during transport.
Maintenance and Safety Tips
To preserve the value and performance of your equipment over the years, a rigorous maintenance schedule is essential:
- Engine and pump oil changes: Perform the first oil change after 50 hours of operation, then every 300 hours thereafter.
- Water filter inspection: Clean the intake filter located between the tank and the pump before each workday.
- System winterization: In Quebec and other regions subject to freezing temperatures, it is crucial to fully drain the water circuit and inject glycol-based antifreeze before the winter season.
- Burner system check: Clean the ignition electrode and check the condition of the diesel nozzle at least once per season.
The Evolution of Mobile High-Pressure Cleaning
The professional cleaning industry is rapidly evolving toward increasingly eco-friendly and ergonomic solutions. The integration of wash-water recycling systems and the use of ultra-low-emission engines represent the next major technological milestones.
At Multi PSI, we continue to innovate by tailoring each design to our clients' precise needs, whether they are municipalities, commercial cleaning companies, or building specialists. Discover more tips in our guide on high-pressure cleaning solutions.
Frequently Asked Questions (FAQ)
Why choose a custom wash platform for a pick-up truck rather than a trailer?
A truck-mounted platform offers better maneuverability in urban areas, avoids the parking constraints associated with trailers, and provides quick access to narrow job sites while keeping the equipment secured in the truck bed.
What is the ideal water capacity for a truck-mounted mobile unit?
A 200-gallon tank offers an excellent balance between working autonomy (about 40 to 50 minutes of continuous spraying at 4 GPM) and compliance with the payload capacity of most 3/4-ton class trucks (2500/3500).
How does the low-level float protect a pressure washer?
The low-level float acts as a safety switch. When the tank is nearly empty, it cuts the pressure washer's electrical circuit, preventing the high-pressure pump from running dry and damaging its seals and pistons.
What type of fuel powers the Hydro Tek SM40004HG hot water pressure washer?
The Honda engine runs on gasoline, while the 300,000 BTU burner is typically fueled by diesel to produce intense, consistent heat.
Is stainless steel really necessary for the frame?
Yes, stainless steel withstands constant moisture, detergent splashes, and de-icing salt exceptionally well, preventing rust and significantly extending the platform's lifespan.
Can the platform be removed from the truck if needed?
Absolutely. Thanks to integrated lifting points (empty lift rating), the custom wash platform for pick-up trucks can be removed from the truck bed in just a few minutes using a forklift.
What is the difference between cold water and hot water washing?
Cold water is effective for removing dust and dirt. Hot water (provided by the 300,000 BTU burner) is essential for quickly dissolving grease, oil, graffiti, chewing gum, and bituminous residue.
What maintenance does the Honda engine on the platform require?
A daily oil level check, periodic air filter cleaning, and spark plug and oil replacement according to manufacturer recommendations ensure flawless operation.
How do you winterize a wash platform for the cold season?
You must completely drain the 200-gallon tank, then circulate antifreeze specifically designed for pressure washers through the pump, the burner coil, and the hoses.
Where can you have a custom industrial wash platform designed in Quebec?
Multi PSI's experts design and build custom mobile units tailored to the specific needs of each business and municipality.
