Industrial maintenance, commercial cleaning, and vehicle fleet washing demand high mobility, consistent power, and flawless equipment reliability. In a market where operational efficiency determines the profitability of a service, having top-tier mobile equipment is a major strategic advantage.
This article offers a comprehensive guide to the use and benefits of a tankless pressure washing trailer. Designed for demanding professionals, this mobile unit brings together industrial-grade components (Vanguard engine, Hydro Tek pump and burner) in a compact, safe, ready-to-use configuration. You'll find a full technical breakdown of the system, its areas of application, a detailed comparison table, and answers to the most frequently asked questions.
Table of contents
-
Technical Specifications and Hydro Tek Industrial Components
-
Maximizing the Efficiency of Your Mobile Cleaning Operations
- FAQ: Your Questions About the Washing Trailer

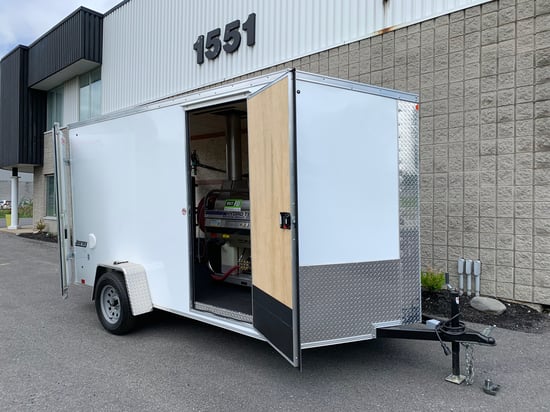

Tankless Pressure Washing Trailer
Professional washers working outdoors need equipment capable of delivering consistent pressure while withstanding environmental stresses. The tankless washing trailer addresses this specific need by offering a trailer ready to connect directly to external water sources.
Unlike systems with bulky onboard tanks that significantly add to vehicle weight, this model favors light weight and striking power. Thanks to its custom design, it offers maximum agility for urban and industrial travel.
Every component has been selected for maximum durability. The chassis and frame house a pressurized assembly built from premium materials, ensuring optimal protection against corrosion and premature wear.
Technical Specifications and Hydro Tek Industrial Components
The performance of a cleaning system depends entirely on the quality of its pump-engine unit and water heater. This unit integrates equipment recognized worldwide for its field reliability.

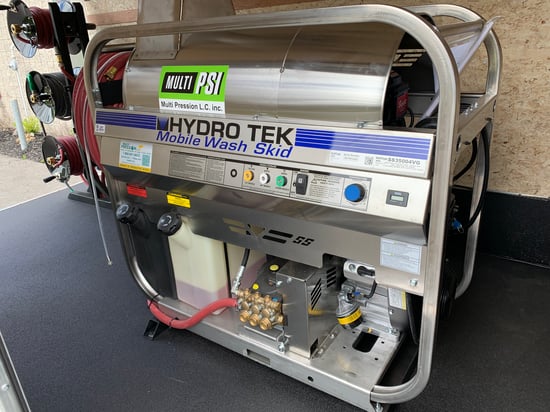

Gas Engine and High-Pressure Pump
At the heart of the system is a rugged, fuel-efficient Vanguard gas engine. This engine powers a stainless-steel Hydro Tek pressure washer with belt-and-pulley drive. This drive method reduces the pump's rotation speed, which lowers heat buildup and extends seal life.
The system selected is the SS35004VG, which generates 3,500 PSI of pressure with a flow rate of 4 gallons per minute (GPM). This combination delivers the impact force needed to dislodge grease, embedded dirt, and the toughest road residue.

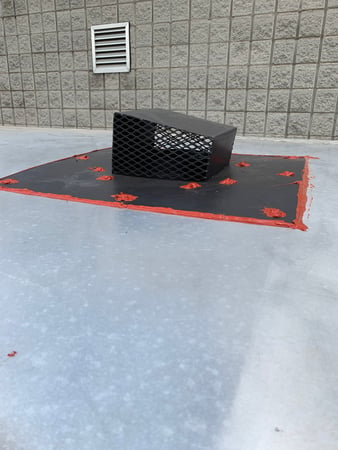

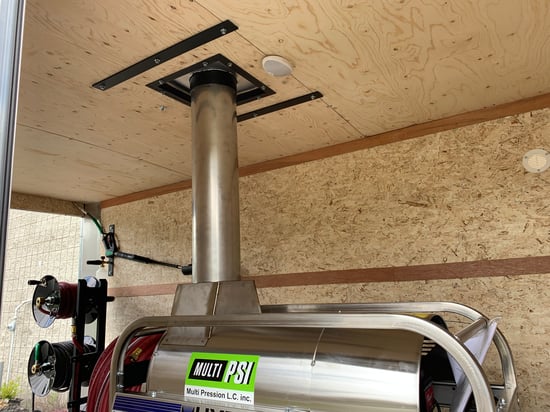

Burner and Roof-Mounted Exhaust System
To dissolve oils and grease without excessive reliance on chemical products, the trailer is equipped with a high-performance burner rated at 386,400 BTU. The heat produced quickly raises water temperature for highly effective thermal cleaning.
Operator safety and the protection of internal components are ensured by a dedicated exhaust system. A chimney installed on the roof vents combustion gases straight upward, preventing any toxic buildup or overheating in the work area.

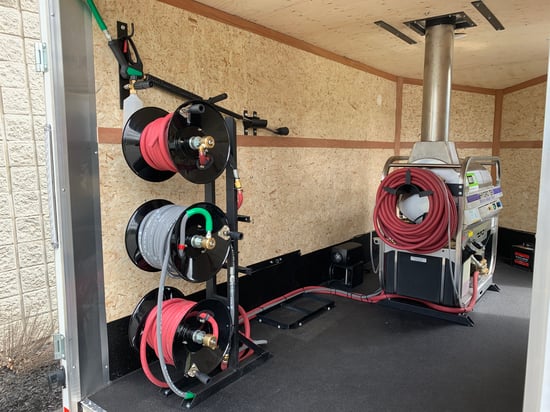

Hose Reel Rack and Anti-Freeze System
Workspace organization is optimized with a single rack combining three essential components:
- A manual reel fitted with a 100-foot high-pressure hose
- A reel dedicated to the external water supply
- A reel for the bypass (water recirculation) system
To withstand harsh northern climates and prevent equipment damage during downtime, a complete anti-freeze system is built directly into the hydraulic circuit.

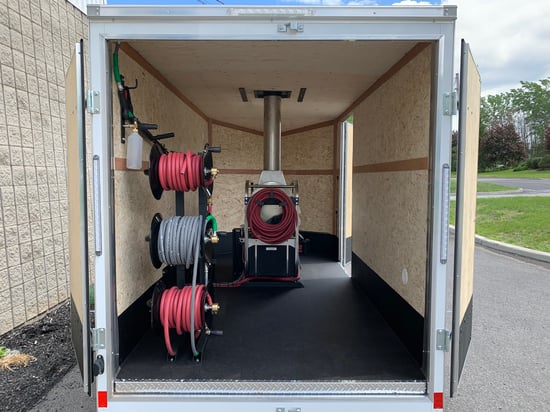

Why a Tankless Configuration?
Choosing a trailer without an integrated water tank meets both engineering and economic efficiency requirements.
By eliminating the water tank (which typically adds between 1,000 and 3,000 lbs to the total weight), the trailer maintains a smaller footprint and a much lighter weight. This allows it to be towed by a wider range of light utility vehicles without requiring a specialized driver's license.
Direct access to water networks at job sites (fire hydrants, commercial taps, industrial water outlets) ensures continuous work without interruptions caused by refilling a limited reserve.
Mobile Cleaning Equipment Comparison
To properly evaluate this unit's performance, here is a detailed comparison table against traditional market configurations.
|
Feature |
Tankless Trailer |
Trailer with 500-gal Tank |
Truck-Mounted Standalone Unit |
|
Maximum Pressure |
3500 PSI |
3500 to 4000 PSI |
2500 to 3000 PSI |
|
Water Flow |
4 GPM |
4 to 5 GPM |
3 GPM |
|
Burner Power |
386,400 BTU |
386,400 BTU |
250,000 BTU (or cold water) |
|
Hose Length |
100 ft on reel |
50–100 ft |
50 ft |
|
Towing Weight |
Very light |
Heavy |
Moderate (truck payload) |
|
Mobility & Agility |
Excellent in urban settings |
Restricted by load |
Good access, limited space |
|
Anti-Freeze Protection |
Full integrated system |
Requires complex draining |
Rarely standard |
Professional Applications and Target Industries
The versatility of this mobile unit makes it a preferred tool for many contractors and facility managers.
Fleet Washing and Auto Shows
Dealerships, auto show organizers, and fleet managers need fast, streak-free washing solutions. Adjustable pressure and hot water allow for a flawless rinse of bodywork and chassis.
Commercial Space and Parking Lot Maintenance
Company parking lots, shopping centers, and gas stations accumulate oil stains, fuel residue, and organic grime. The combined power of 3,500 PSI and a 386,400 BTU burner dissolves these deposits without damaging asphalt or concrete.
Special Events, Trade Shows, and Residential Use
At public events, trade shows, or private residential jobs, quick setup is essential. Unrolling the 100-foot hose provides an extended working radius without needing to move the trailer.
Usage Tips, Safety, and Winter Maintenance
To maximize the longevity of your mobile cleaning equipment, a few operating rules must be strictly followed.
Startup Procedure and Operational Safety
Before starting up, check the oil levels of the Vanguard engine and the Hydro Tek pump. Connect the supply hose to the water network before starting the engine to avoid running the pump dry.
Using the roof-mounted exhaust chimney requires working in well-ventilated areas when stopping under covered structures. Personal protective equipment (goggles, gloves, safety boots) is mandatory.

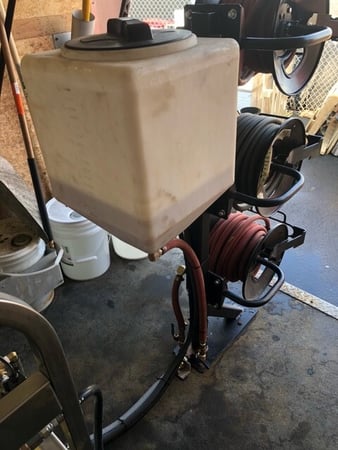

Using the Anti-Freeze System in Cold Weather
During freezing periods, activate the integrated anti-freeze system as soon as work is finished. This system injects a protective solution throughout all hoses, reels, and internal pump components, preventing molded parts from cracking due to ice expansion.
Maximizing the Efficiency of Your Mobile Cleaning Operations
Adopting professional equipment is part of an overall approach to operational profitability. By reducing setup time, field crews increase the number of daily jobs they can complete.
To learn more about our full range of pressure equipment, we invite you to explore our industrial pressure washer solutions as well as our professional hose and reel accessories. You can also browse our dedicated Hydro Tek replacement parts section to keep up with your maintenance needs.
To learn more about pressurized equipment safety standards, you can consult the recommendations of CNESST, or find out about industrial engine efficiency standards from Vanguard.
Optimize Your Washing Equipment Today
The tankless washing trailer represents the perfect combination of industrial power, operational safety, and field agility. Built to withstand intensive use while offering optimal ease of use with its three hose reels and anti-freeze protection, it is a profitable investment for any cleaning company or facility management business.
Want to customize a trailer to your specific needs or get a demonstration of our equipment? Contact our high-pressure cleaning experts now for personalized advice and a detailed quote.
FAQ: Your Questions About the Washing Trailer
What is the maximum pressure delivered by this washing trailer?
The trailer is equipped with a Hydro Tek pump delivering up to 3,500 PSI with a flow rate of 4 GPM, ideal for industrial and commercial cleaning.
Why choose a washing trailer without a water tank?
A tankless trailer is much lighter, easy to tow with any utility vehicle, and offers great maneuverability while connecting directly to on-site water taps.
How does the roof-mounted exhaust system work?
The system includes a vertical chimney fixed to the trailer's roof that safely vents combustion gases from the 386,400 BTU burner outward.
Can the washing trailer be used in winter?
Yes, it includes an anti-freeze system specifically designed to protect the pump, lines, and hose reels from freezing in extremely cold temperatures.
What is the length of the high-pressure hose?
The trailer includes a manual reel mounted on the rack with a 100-foot high-pressure hose.
What kinds of jobs can be done with this trailer?
It's perfectly suited for vehicle washing, parking lot maintenance, trade shows, gas stations, building facades, and private residences.
What engine powers the pressure washer?
The system is powered by a powerful Vanguard gas engine, known for its reliability and durability under intensive use.
How does the belt-and-pulley drive work?
The belt-and-pulley drive reduces the pump's rotation speed, which lowers mechanical wear, reduces heat, and extends the overall lifespan of the washer.
How many hose reels are installed on the trailer?
The trailer has three reels grouped on a single rack: one for the high-pressure hose, one for the water supply, and one for the bypass.
Can the trailer be connected to any water source?
Yes, thanks to its external supply reel, the trailer easily connects to most taps or commercial water outlets available on-site.
Author: Multi PSI has been an expert in high-pressure washing equipment for over 25 years. As an equipment distributor, we also offer mobile and in-shop repair services. We are recognized for our expertise in custom projects, including washing platforms and trailers, as well as the installation of washing systems with hose reels, booms, or rails.
